Create Folder (OneDrive) activity

An activity that creates a folder in OneDrive.



Configure the Create Folder activity

To configure the Create Folder activity, do the procedure in this topic.

Good to Know

How to Start

  1. On the Organizer, do one of these:
  2. Do one of these:
    • Add an activity:
      1. In the Process Builder, in the Activity Library, open the OneDrive tab.
      2. On the OneDrive tab, drag the Create Folder activity onto your process.
    • Change an activity:
      1. In your process, double-click your activity.

Procedure

  1. Complete the fields on the General Configuration screen.

    For more information, refer to Configure General Options for a System Activity.

  2. Click Create Folder .
  3. Complete the fields on the Create Folder in OneDrive Configuration screen.

    For more information, refer to Create a Folder in OneDrive.

  4. (Optional) Click Advanced > E-mail Notification .

    For more information, refer to Configure E-mail Notifications for Any Activity

General Configuration

Specifies the common information for a system activity.



Fields

Field Name Definition

Display Name
Function:
Specifies the activity name that shows in your process.
Accepted Values:
One line of text that can have spaces.
Default Value:
None
Accepts Process Data Variables:
No

Description
Function:
Specifies an optional description for your activity.
Accepted Values:
More than one line of text.
Default Value:
None
Accepts Process Data Variables:
No

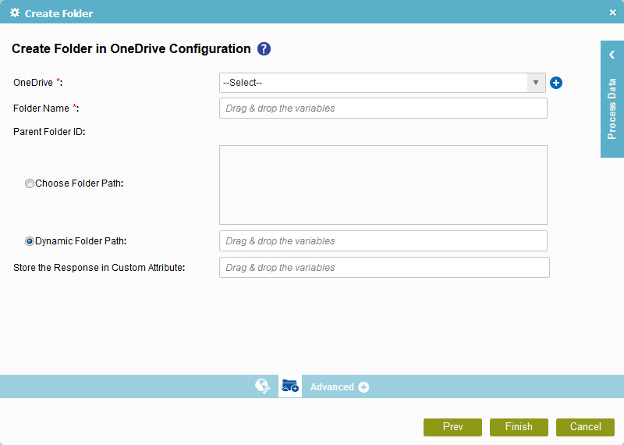

Create Folder in OneDrive Configuration

Specifies the information for the new folder.



Fields

Field Name Definition

OneDrive
Function:
Specifies the access token that connects to your OneDrive application.
Accepted Values:
A list of access tokens configured for your environment.
Default Value:
None
Accepts Process Data Variables:
No

Add Token

Opens this Screen:
New OneDrive Access Token
Function of this Screen:
Configures a new access token for Microsoft OneDrive.

Folder Name
Function:
Specifies the name of a folder.
Accepted Values:
One line of text that can have spaces.
Default Value:
None
Accepts Process Data Variables:
Yes

Parent Folder ID
Function:
Specifies the path of the folder.
Accepted Values:
  • Choose Folder Path - Specifies an absolute path for the folder.
  • Dynamic Folder Path - Specifies a process variable that stores the path of folder.
Default Value:
Choose Folder Path
Accepts Process Data Variables:
Yes
Example:
  • c:\My Documents\sample1.doc
  • ${HomeDirectory}\sample2.doc
  • http://demo3:8000/DocumentLib1/sample3.doc

Store the Response in Custom Attribute
Function:
Specifies the process data variable that stores the new folder ID.

OneDrive supplies the folder ID.

Accepted Values:
A process data variable.
Default Value:
None
Accepts Process Data Variables:
Yes
