Get Storage Info (OneDrive) activity

An activity that gets information about your storage limits in OneDrive to store in process data variables.



Configure the Get Storage Info activity

To configure the Get Storage Info activity, do the procedure in this topic.

Good to Know

How to Start

  1. On the Organizer, do one of these:
  2. Do one of these:
    • Add an activity:
      1. In the Process Builder, in the Activity Library, open the OneDrive tab.
      2. On the OneDrive tab, drag the Get Storage Info activity onto your process.
    • Change an activity:
      1. In your process, double-click your activity.

Procedure

  1. Complete the fields on the General Configuration screen.

    For more information, refer to Configure General Options for a System Activity.

  2. Click Get Storage Info .
  3. Complete the fields on the Get OneDrive Stroge Information Configuration screen.

    For more information, refer to Get Storage Information in OneDrive.

  4. (Optional) Click Advanced > E-mail Notification .

    For more information, refer to Configure E-mail Notifications for Any Activity

General Configuration

Specifies the common information for a system activity.



Fields

Field Name Definition

Display Name
Function:
Specifies the activity name that shows in your process.
Accepted Values:
One line of text that can have spaces.
Default Value:
None
Accepts Process Data Variables:
No

Description
Function:
Specifies an optional description for your activity.
Accepted Values:
More than one line of text.
Default Value:
None
Accepts Process Data Variables:
No

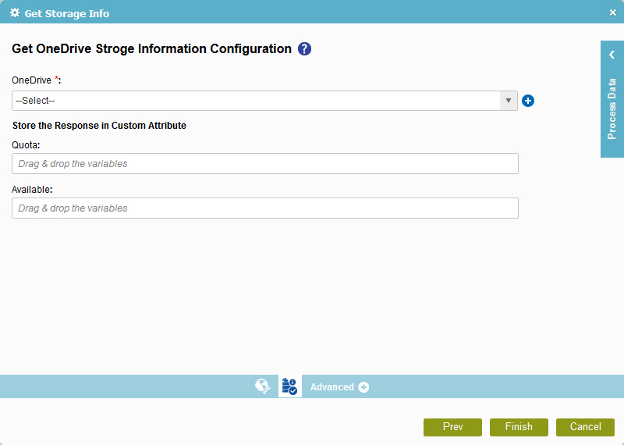

Get OneDrive Stroge Information Configuration

Configures to get storage information from OneDrive, and store in process data variables.



Fields

Field Name Definition

OneDrive
Function:
Specifies the access token that connects to your OneDrive application.
Accepted Values:
A list of access tokens configured for your environment.
Default Value:
None
Accepts Process Data Variables:
No

Quota
Function:
Specifies the process data variable that stores the total available storage space.
Accepted Values:
A process data variable.
Default Value:
None
Accepts Process Data Variables:
Yes

Available
Function:
Specifies the process data variable that stores the unused storage space.
Accepted Values:
A process data variable.
Default Value:
None
Accepts Process Data Variables:
Yes
