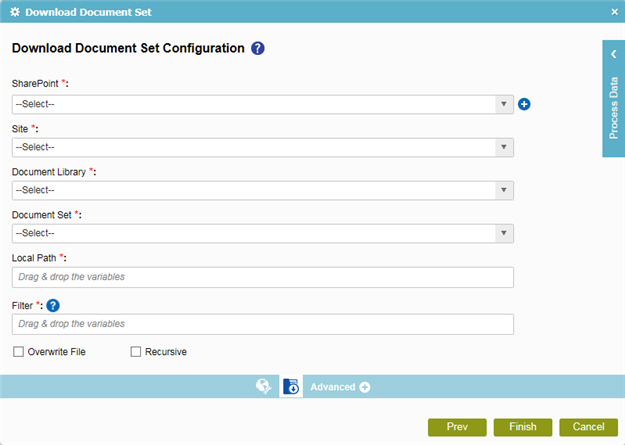

Download Document Set activity

Display Name

Function:

Specifies the activity name that shows in your process.

Accepted Values:

One line of text that can have spaces.

Default Value:

None

Accepts Process Data Variables:

No

Description

Function:

Specifies an optional description for your activity.

Accepted Values:

More than one line of text.

Default Value:

None

Accepts Process Data Variables:

No

SharePoint

Function:

Specifies the access token that connects to your SharePoint site.

Accepted Values:

A list of access tokens configured for your environment.

Default Value:

None

Add Token

Opens this Screen:

New SharePoint Access Token

Function of this Screen:

Configures a new access token for SharePoint.

Site

Function:

Specifies the URL for your SharePoint site.

Accepted Values:

• A valid SharePoint site URL
• A process data variable

Default Value:

None

Accepts Process Data Variables:

Yes

Example:

• http://[machine name]:[port]/sites/[site name]

  You must include the /sites in the Site URL for the site to be created successfully.

Document Library

Function:

Specifies the name for the new document library.

Accepted Values:

One line of text that can have spaces.

Default Value:

None

Accepts Process Data Variables:

No

Document Set

Function:

Specifies the name of the document set.

Accepted Values:

The name of your document set.

Default Value:

None

Accepts Process Data Variables:

Yes

Local Path

Function:

Specifies the location of the file system folder on the local computer where the activity does an action, such as uploading or downloading files.

This setting gives the source location for the files to be uploaded and the target location for the files to be downloaded.

Accepted Values:

A file path relative to the AgilePoint Server application's root directory.

Default Value:

None

Accepts Process Data Variables:

Yes

Example:

• If AgilePoint Server is installed at:

  c:\Inetpub\wwwroot\AgilePointServer\

  And, the file once downloaded is to be located at:

  c:\Inetpub\wwwroot\AgilePointServer\files\MyFile.txt

  Then, the LocalPath property must be set to the following value:

  files

• If AgilePoint Server is installed at:

  c:\Inetpub\wwwroot\AgilePointServer\

  And, the file once downloaded is to be located at:

  c:\Inetpub\wwwroot\AgilePointServer\files\temp\MyFile.txt

  Then, the LocalPath property must be set to the following value:

  files\temp

Filter

Function:

Specifies the file name or a set of files expressed with the filter expression to search within the specified source location.

Accepted Values:

• A file name.
• A filter string that uses asterisks (*) as wildcards.

Default Value:

None

Accepts Process Data Variables:

No

Example:

These are some examples of filter expressions:

• *.* - All files are searched.
• *.xml - The files that have the .xml file extension are searched.
• *.doc - The files that have the .doc file extension are searched.
• MyFile.xml - Only the specific file MyFile.xml is searched.

The filter action is done at the source location specified in the activity.

Overwrite File

Function:

Specifies if the activity overwrites the files if they already exist at the specified destination location.

Accepted Values:

• Deselected - The activity does not overwrite any existing file..
• Selected - The activity overwrites the file if it exists with the same name at the destination location..

Default Value:

Deselected

Recursive

Function:

Specifies if the activity's action — such as copy, upload, or delete — is recursive. In other words, it specifies if the activity does the action again in the subfolders of the target location

Accepted Values:

• Deselected - The activity does the action only on the files in the specified source folder. There is no effect on files in subfolders.
• Selected - The activity does the action on the files in the specified source folder, as well as the files in the subfolders.

Default Value:

Deselected
