Process Activities / Database tab
Parent topic: Database tab

Batch Insert activity

An activity that puts more than one new database record into a database table



Configure the Batch Insert activity

To configure the Batch Insert activity, do the procedure in this topic.

Good to Know

How to Start

  1. On the Organizer, do one of these:
  2. Do one of these:
    • Add an activity:
      1. In the Process Builder, go to the Activity Library, and open the Database tab.
      2. On the Database tab, drag the Batch Insert activity onto your process.
    • Change an activity:
      1. In your process, double-click your activity.

Procedure

  1. Complete the fields on the General Configuration screen.

    For more information, refer to Configure General Options for a Database activity..

  2. Click Batch Insert .
  3. On the Batch Insert screen, do one of these.

    For more information, refer to Put More than One Record into a Database Table.

  4. (Optional) Click Advanced > E-mail Notification .

    For more information, refer to Configure E-mail Notifications for Any Activity

General Configuration

Specifies the general information for a Database activity.



Fields

Field Name Definition

Display Name
Function:
Specifies the activity name that shows in your process.
Accepted Values:
One line of text that can have spaces.
Default Value:
None
Accepts Process Data Variables:
No

Description
Function:
Specifies an optional description for your activity.
Accepted Values:
More than one line of text.
Default Value:
None
Accepts Process Data Variables:
No

Database Type
Function:
Specifies the type of database to be used.
Accepted Values:
  • SQL Server
  • Oracle
Default Value:
SQL Server

Connection Timeout (Seconds)
Function:
Specifies the number of seconds permitted to complete an action before the connection stops.
Accepted Values:
An integer that represents a number of seconds.
Default Value:
600
Accepts Process Data Variables:
No

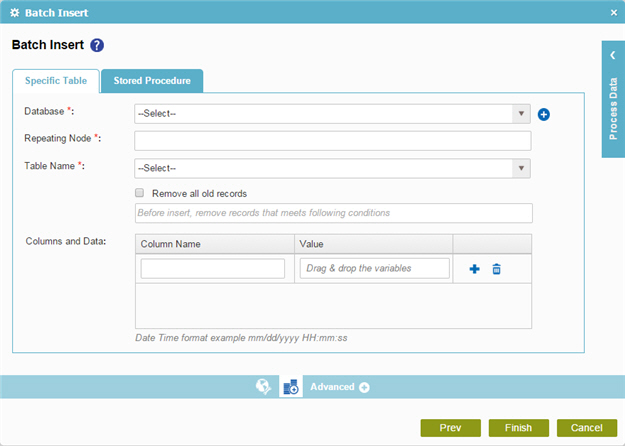

Batch Insert > Specific Table

Specifies where and how to insert the new database records into the database.



Fields

Field Name Definition

Database
Function:
Specifies the access token that connects to your database.
Accepted Values:
A list of access tokens configured for your environment.
Default Value:
None
Accepts Process Data Variables:
No

Add Token

Opens this Screen:
New Database Access Token
Function of this Screen:
Configures a new access token for a database.

Repeating Node
Function:
Specifies an XPath to the root of a repeating element in a schema where all the data are stored. These data will be inserted into the database during the insert operation.
Accepted Values:
A valid XPath to a repeating XML node.
Default Value:
None
Accepts Process Data Variables:
Yes
Example:
/pd:myFields/pd:PersonalDetails

Table Name
Function:
Specifies the name of the database table where this activity puts the record.
Accepted Values:
A valid database table name.
Default Value:
None
Accepts Process Data Variables:
Yes
Example:

Remove All Old Records
Function:
Removes all the old records from the database.
Accepted Values:
  • Selected - Enables the remove all old records option.
  • Deselected - Removes the record that satisfy the specified condition.
Default Value:
Deselected

Before insert, remove records that meets following conditions
Function:
Removes the records from the database that satisfies the specified condition. This remove operation is performed before the insert operation.
Accepted Values:
A valid SQL condition after WHERE clause.
Default Value:
None
Accepts Process Data Variables:
No

Column Name
Function:
Specifies the name of the database column.
Accepted Values:
A valid database column name.
Default Value:
None
Accepts Process Data Variables:
No
Example:
CustomerName

Value
Function:
Specifies an XPath to a single node within the given repeating XPath.
Accepted Values:
A valid XPath.
Default Value:
None
Accepts Process Data Variables:
Yes
Example:
${/pd:AgilePoint/pd:Products/pd:ComponentName}

Create

Function:
Creates a mapping to a database table column from the schema.

Delete

Function:
Deletes the connection in the database table column.

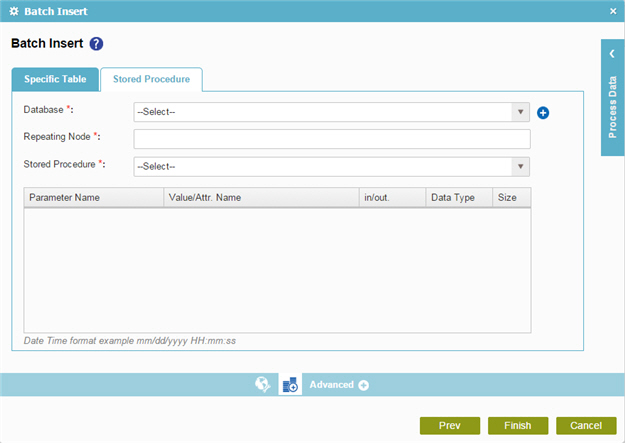

Batch Insert > Stored Procedure

Specifies where and how to put more than one record into the database with a stored procedure.



Fields

Field Name Definition

Database
Function:
Specifies the access token that connects to your database.
Accepted Values:
A list of access tokens configured for your environment.
Default Value:
None
Accepts Process Data Variables:
No

Add Token

Opens this Screen:
New Database Access Token
Function of this Screen:
Configures a new access token for a database.

Repeating Node
Function:
Specifies an XPath to the root of a repeating element in a schema where all the data are stored. These data will be inserted into the database during the insert operation.
Accepted Values:
A valid XPath to a repeating XML node.
Default Value:
None
Accepts Process Data Variables:
Yes
Example:
/pd:myFields/pd:PersonalDetails

Stored Procedure
Function:
Specifies the name of your stored procedure.
Accepted Values:
One line of text with no spaces.
Default Value:
None
Accepts Process Data Variables:
Yes
Example:
GetUserDetail

Parameter Name
Function:
Specifies the parameters for the stored procedure.
Accepted Values:
A valid parameter for the specified stored procedure.
Default Value:
None
Accepts Process Data Variables:
Yes
Example:
OrderNumber

Value/Attr. Name
Function:
Specifies the value of the stored procedure parameter.
Accepted Values:
A valid value for the specified parameter.
Default Value:
None
Accepts Process Data Variables:
Yes

in/out.
Function:
Specifies the in/out parameters for the stored procedure.
Accepted Values:
  • Input - Specifies that the parameter is an input value for the stored procedure.
  • Output - Specifies that the parameter is an output value for the stored procedure.
  • InputOuput - Specifies that the parameter can be input/output value for the stored procedure.
  • ReturnValue - Specifies that the parameter is a return value for the stored procedure.
Default Value:
None
Accepts Process Data Variables:
No

Data Type
Function:
Specifies the SQL server data type of the specified parameter for the stored procedure.
Accepted Values:
  • String
  • Integer
  • DateTime
  • Double
  • Short
  • Float
  • Decimal
  • Boolean
Default Value:
None

Size
Function:
Specifies size of the input parameter for the stored procedure.
Accepted Values:
An integer.
Default Value:
None
Accepts Process Data Variables:
No
