Update Metadata activity

Display Name

Function:

Specifies the activity name that shows in your process.

Accepted Values:

One line of text that can have spaces.

Default Value:

None

Accepts Process Data Variables:

No

Description

Function:

Specifies an optional description for your activity.

Accepted Values:

More than one line of text.

Default Value:

None

Accepts Process Data Variables:

No

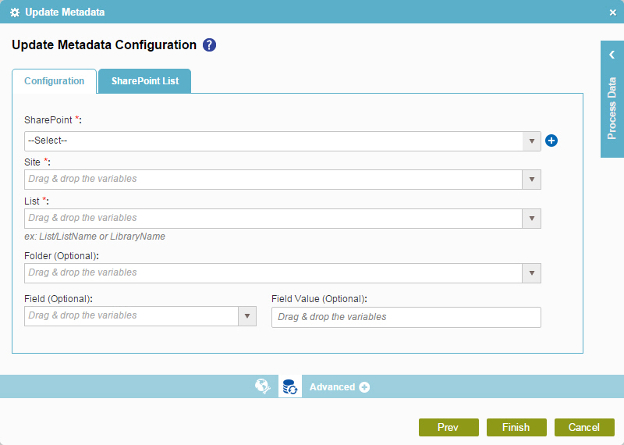

SharePoint

Function:

Specifies the access token that connects to your SharePoint site.

Accepted Values:

A list of access tokens configured for your environment.

Default Value:

None

Add Token

Opens this Screen:

New SharePoint Access Token

Function of this Screen:

Configures a new access token for SharePoint.

Site

Function:

Specifies the URL for the SharePoint library that contains the process data variable.

Accepted Values:

A valid SharePoint site URL.

Default Value:

None

Accepts Process Data Variables:

Yes

List

Function:

Specifies the name of your SharePoint list.

Accepted Values:

The name of your SharePoint list.

Default Value:

None

Accepts Process Data Variables:

Yes

Folder

Function:

Specifies the name of your SharePoint folder.

The folder contains the process data variables to change.

Accepted Values:

The name of your SharePoint folder

Default Value:

None

Accepts Process Data Variables:

No

Field

Function:

Specifies the name of the SharePoint column to use to limit the change in the process data variable's value.

Accepted Values:

The name of your SharePoint list column.

Default Value:

"ID", the list column that specifies the unique list item ID

Accepts Process Data Variables:

No

Field Value

Function:

Specifies the SharePoint column's value.

This will limit the change of the process data variable to the value specified.

Accepted Values:

The list column's value.

Note the following:

• If you want to clear a value, specify NULL.
• If you leave the Field Value property empty, the activity updates all records in the SharePoint library.

Default Value:

${ListItemID}

Accepts Process Data Variables:

Yes

Display Name

Function:

Specifies the name of the SharePoint library column.

Accepted Values:

Read only.

Internal Value

Function:

Specifies the new value for the SharePoint column.

Accepted Values:

• A valid column value.
• An Xpath to a schema element

Default Value:

None

Accepts Process Data Variables:

No

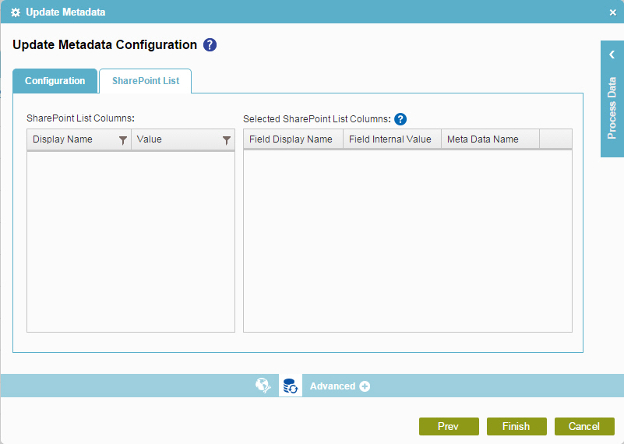

Field Display Name

Function:

Specifies the SharePoint column names for your list or library.

Accepted Values:

Read only.

The values show when you select a list item.

Field Internal Value

Function:

Specifies the internal names of the SharePoint columns for your list or library.

Accepted Values:

Read only.

The values show when you select a list item

Meta Data Name

Function:

The name of the process data variable to store the list item field values. The values can be changed to a process attribute, an XML schema element, or SharePoint variable.

Accepted Values:

• A custom attribute.
• An XPath to a schema element

  To add XML metadata associated with the process model, click the button in the MetaData Name field.

  In order to update the XML metadata with the retrieved field values, the AgilePoint Envision process template type must be either Microsoft InfoPath or Generic.
• SharePoint metadata.

Default Value:

None.

But when you add a field, the Meta Data Name column is completed with the internal name of the SharePoint column.

Accepts Process Data Variables:

Yes

Filter

Function:

Shows the items in the list based on the values you enter.

1. Click Filter .
2. On the filter screen, select your operator.
3. Enter the values to show in your list.

Accepted Values:

• Is equal to
• Is not equal to
• Starts with
• Contains
• Does not contain
• Ends with

Default Value:

Is equal to
