Process Activities / SharePoint tab
Parent topic: SharePoint tab

Remove Permission activity

An activity that removes the permissions from a SharePoint site, site collection, list, library, or list item.



Configure the Remove Permission activity

To configure the Remove Permission activity, do the procedure in this topic.

Prerequisites

Good to Know

How to Start

  1. On the Organizer, do one of these:
  2. Do one of these:
    • Add an activity:
      1. In the Process Builder, go to the Activity Library, and open the SharePoint tab.
      2. On the SharePoint tab, drag the Remove Permission activity onto your process.
    • Change an activity:
      1. In your process, double-click your activity.

Procedure

  1. Complete the fields on the General Configuration screen.

    For more information, refer to Configure General Options for a System Activity.

  2. Click Remove Permission .
  3. Configure Remove Permission screen.
  4. Click Role Type .
  5. Configure Permission screen.

    For more information, refer to Remove a Permission from a SharePoint Resource.

  6. (Optional) Click Advanced > E-mail Notification .

    For more information, refer to Configure E-mail Notifications for Any Activity

General Configuration

Specifies the common information for a system activity.



Fields

Field Name Definition

Display Name
Function:
Specifies the activity name that shows in your process.
Accepted Values:
One line of text that can have spaces.
Default Value:
None
Accepts Process Data Variables:
No

Description
Function:
Specifies an optional description for your activity.
Accepted Values:
More than one line of text.
Default Value:
None
Accepts Process Data Variables:
No

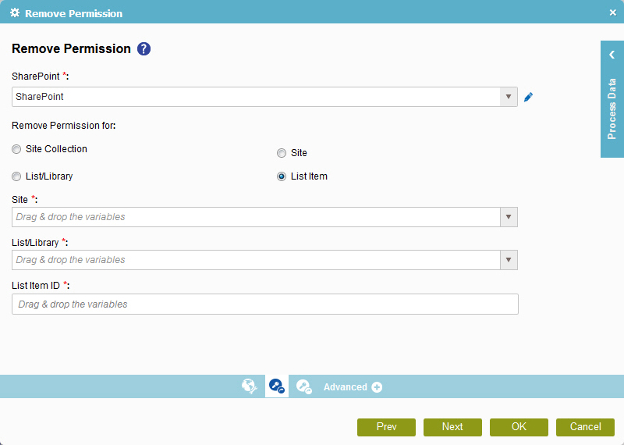

Remove Permission

Specifies how to configure the activity to remove permissions in SharePoint.



Fields

Field Name Definition

SharePoint
Function:
Specifies the access token that connects to your SharePoint site.
Accepted Values:
A list of access tokens configured for your environment.
Default Value:
None
Accepts Process Data Variables:
No

Add Token

Opens this Screen:
New SharePoint Access Token
Function of this Screen:
Configures a new access token for SharePoint.

Remove Permission for
Function:
Specifies the site collection, site, subfolders, or an item for which to remove the permission.
Accepted Values:
  • Site Collection
  • Site
  • List/Library
  • List Item
Default Value:
Site Collection
Accepts Process Data Variables:
No

Site
Function:
Specifies the URL for your SharePoint site.
Accepted Values:
Default Value:
None
Accepts Process Data Variables:
Yes
Example:

  • http://[machine name]:[port]/sites/[site name]

    You must include the /sites in the Site URL for the site to be created successfully.

List/Library
Function:
Specifies the name of the SharePoint library or list.
To Open this Field:
  1. Select List/Library or List Item.
Accepted Values:
A valid SharePoint library name or list name.
Default Value:
None
Accepts Process Data Variables:
Yes

List Item ID
Function:
Specifies the ID of a SharePoint list item.
To Open this Field:
  1. Select List Item.
Accepted Values:
The ID of your SharePoint list item.
Default Value:
None
Accepts Process Data Variables:
Yes

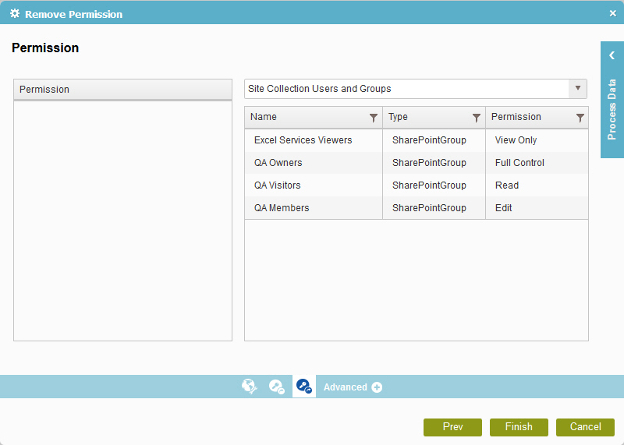

Permission

Specifies how to configure the role type and permissions to remove.



Fields

Field Name Definition

Permission
Function:
Specifies the permissions to remove for a site collection, site, list, library, or a list item.
Accepted Values:
A list of permissions.
Default Value:
None
Accepts Process Data Variables:
Yes
Example:
QA Owners

Name
Function:
Specifies the name of the user or group with permissions to the the site collection, site, list, library, or a list item.
Accepted Values:
A list of names.
Default Value:
None
Accepts Process Data Variables:
No

Type
Function:
Specifies the type of permission for the set site collection, site, list, library, or a list item.
Accepted Values:
  • User - A SharePoint user.
  • SharePoint Group - A group within a SharePoint site collection level
Default Value:
None
Accepts Process Data Variables:
No

Permission Level
Function:
Specifies the permission level for the SharePoint resource.
Accepted Values:
  • View Only - Lets participants view pages, list items, and files.
  • Read - Lets participants view pages and list items and download files.
  • Contribute - Lets participants view, add, update, and delete list items and files.
  • Edit - Lets participants add, change and delete lists, list items, and files.
  • Design - Lets participants view, add, update, delete, approve changes, and customize.
  • Full Control - Lets participants have full control.
Default Value:
None
Accepts Process Data Variables:
No
