Create an XML Document

To create an XML document from a process, do the procedure in this topic.

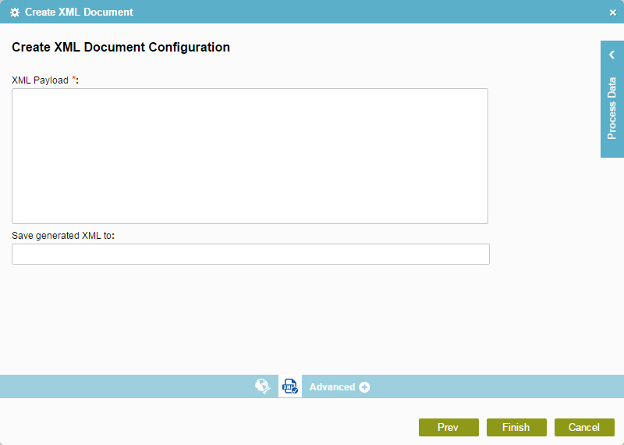

Create XML Document Configuration Screen



Good to Know

How to Start

  1. On the Organizer, do one of these:
  2. Do one of these:
    • Add an activity:
      1. In the Process Builder, in the Activity Library, open the Utilities tab.
      2. Utilities , drag the Create XML Document activity onto your process.
    • Change an activity:
      1. In your process, double-click your activity.
  3. Click Create XML Document .

Procedure

  1. On the Create XML Document Configuration screen, in the XML Payload field, enter the payload to make the XML document.
  2. Complete this field as necessary.
    Field Name Definition

    Save Generated XML to

    Function:
    Specifies the download destination for the XML file.
    Accepted Values:
    • A valid file path.
    • A process data variable.

      You can use Process Data screen to specify a process data variable.

    Default Value:
    None
    Accepts Process Data Variables:
    Yes
