New REST Access Token

Configures a new access token for a REST service.



How to Start

  1. On the Organizer, do one of these:
  2. Do one of these:
    • Add an activity:
      1. In the Process Builder, in the Activity Library, open the Web Services tab.
      2. On the Web Services tab, drag the REST Service activity onto your process.
    • Change an activity:
      1. In your process, double-click your activity.
  3. Click Next.
  4. On the Rest Service field, click Add Token .

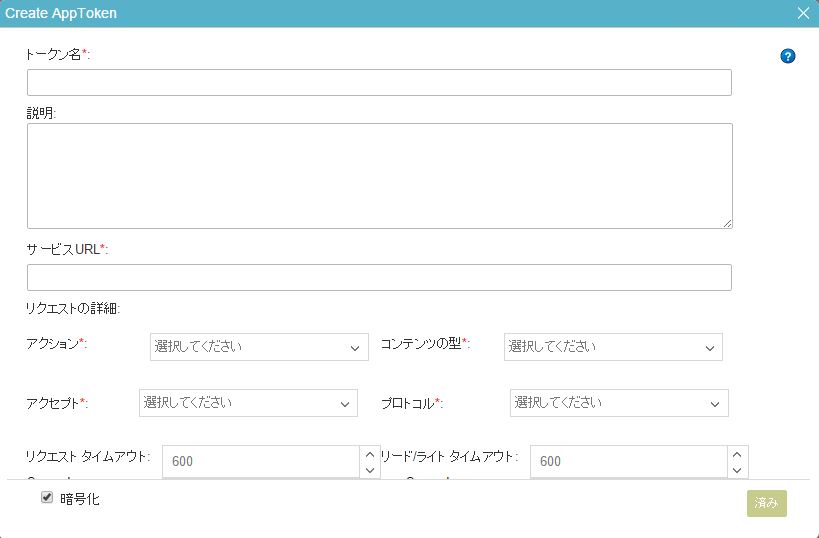

Fields

Field Name Definition

Token Name

Function:
Specifies the unique name for your connection to REST service.
Accepted Values:
A text string that can include letters, numbers, and spaces
Default Value:
None

Description

Function:
A description for your access token.
Accepted Values:
More than one line of text.
Default Value:
None

Service URL

Function:
Specifies the URL of your REST service.
Accepted Values:
A valid rest service URL.
Default Value:
None

Action

Function:
Specifies the type of action for the REST service to do.
Accepted Values:
  • POST
  • GET
  • DELETE
  • PUT
Default Value:
None

Content-Type

Function:
Specifies the type of content the REST service uses.
Accepted Values:
  • JSON
  • XML
Default Value:
None

Accept

Function:
Specifies the data format to accept in a REST service.
Accepted Values:
  • JSON
  • XML
  • TEXT
Default Value:
None

Protocol

Function:
Specifies the communication protocol for your REST service.
Accepted Values:
  • HTTP 1.0
  • HTTP 1.1
Default Value:
None

Request Timeout

Function:
Specifies the maximum amount of time, in seconds, to complete the REST service call for the activity.
Accepted Values:
An integer that specifies a number of seconds.
Default Value:
600

Read Write Timeout

Function:
Specifies the maximum amount of time, in seconds, for read and write methods.
Accepted Values:
An integer that specifies a number of seconds.
Default Value:
600

Request Headers

Function:
Specifies the custom headers necessary for the REST service.

Request headers contain application-specific information in the SOAP header. Request headers are usually used to give security information, such as authentication credentials.

Accepted Values:
  • Header
  • Value

Use the Add Header button to add the Header and Value for the web service.

Default Value:
None

Add Header

Function:
Adds the row for Header and Value fields.

Update

Function:
Changes the information in the Header and Value fields.

Cancel

Function:
Deletes the row with Header and Value fields.

Authentication

Opens this Screen:
Add REST Service Access Token > Authentication screen
Function of this Screen:
Creates REST service authentication credentials with basic or OAuth 2.0 protocol to connect to a REST service URL.

Test Connection

Function:
Makes sure the specified REST service account is correct.

Encrypt

Function:
Holds the access token in the AgilePoint database as encrypted data.
Accepted Values:
  • Deselected - The access token is in plain text in the database.
  • Selected - The access token is encrypted in the database.
Default Value:
Deselected
