How to Start
- In the Manage Center, click
App Builder
> Global Access Tokens.

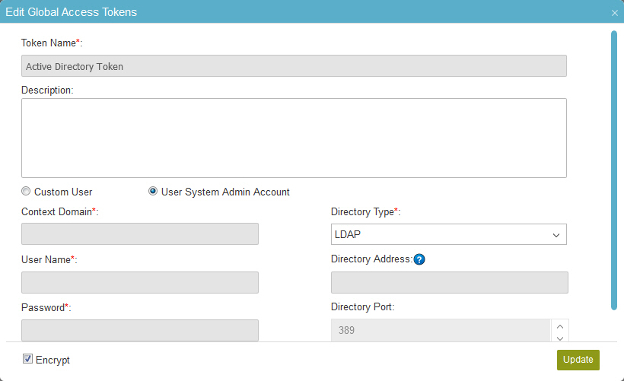

- On the Global Access Tokens screen, select your key.
- Click Edit Token
.
Fields
| Field Name |
Definition |
Access Token Name
|
- Function:
- Specifies the unique name for your connection to Active Directory.
- Accepted Values:
- A text string that can include letters, numbers, and spaces
- Default Value:
- None
|
Description
|
- Function:
- A description for your access token.
- Accepted Values:
- More than one line of text.
- Default Value:
- None
|
User Account
|
- Function:
- Specifies the user account to connect to the Active Directory.
- Accepted Values:
- Custom User - Uses credentials you specify.
- User System Admin Account - Uses the system administrator account.
- Default Value:
- Custom User
|
Context Domain
|
- Function:
- Specifies the name of your Active Directory domain.
- Accepted Values:
- A valid Active Directory domain name.
- Default Value:
- None
|
User Name
|
- Function:
- Specifies the user name of the account to use to create a group in Active Directory.
- Accepted Values:
- A valid user name.
- Default Value:
- None
- Accepts Process Data Variables:
- No
|
Password
|
- Function:
- Specifies the password of the account to use to create a group in the domain
- Accepted Values:
- A valid password.
- Default Value:
- None
- Accepts Process Data Variables:
- No
|
Directory Type
|
- Function:
- Specifies the format for your Active Directory.
- Accepted Values:
- LDAP - Specifies your Active Directory uses LDAP.
- WinNT - Specifies your Active Directory uses WinNT.
- Default Value:
- LDAP
|
Directory Address
|
- Function:
- Specifies a host address for your Active Directory.
- Accepted Values:
- IP address - The IP address of the Active Directory.
For example, 211.325.5.3.
- IP address/[relative distinguished name (RDN)] - The IP
address of the Active Directory with the
container name (CN), organizational unit (OU), or both for the
user. For example,
211.325.5.3/OU=MyGroup
- Default Value:
- None
|
Directory Port
|
- Function:
- Specifies a port number of the Active Directory.
- Accepted Values:
- A valid port number for your Active Directory.
- Default Value:
- 389
|
Test Connection
|
- Function:
- Makes sure the specified Active Directory account is correct.
|
Encrypt
|
- Function:
- Holds the access token in the AgilePoint database as encrypted data.
- Accepted Values:
- Deselected - The access token is in plain text in the database.
- Selected - The access token is encrypted in the database.
- Default Value:
- Deselected
|
