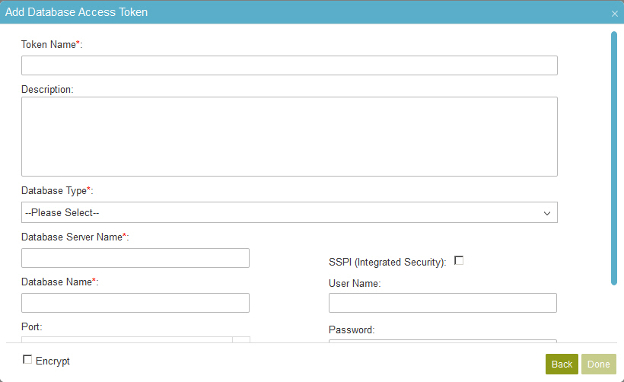

Add Database Access Token screen

Adds the settings for a database access token.



How to Start

  1. In the Manage Center, click App Builder > Global Access Tokens.
  2. On the Global Access Tokens screen, click Add Token
  3. On the Add Global Access Tokens > Select Application screen, select Database .
  4. Click Next.

Fields

Field Name Definition

Token Name

Function:
Specifies the unique name for your connection to the Database.
Accepted Values:
A string that can include letters, numbers, and spaces.
Default Value:
None

Description

Function:
A description for your access token.
Accepted Values:
More than one line of text.
Default Value:
None

Database Type

Function:
Specifies the database technology to store your data.
Accepted Values:
  • SQL Server
  • MySQL
  • Oracle
Default Value:
None

Database Server Name

Function:
Specifies the database server name, where your database is installed.
Accepted Values:
A valid database server name.
Default Value:
None
Accepts Process Data Variables:
No

Database Name

Function:
Specifies the name of your database.
Accepted Values:
The name of your database.
Default Value:
None

User Name

Function:
Specifies the user name for database authentication.
Accepted Values:
A valid user name.
Default Value:
None
Accepts Process Data Variables:
No

Password

Function:
The password for the authentication account.
Accepted Values:
A valid password.
Default Value:
None
Accepts Process Data Variables:
No

SSPI (Integrated Security)

Function:
Determines whether the SSPI integrated security is to be activated.
Accepted Values:
  • Deselected - Specifies not to activate the SSPI integrated security.
  • Selected - Specifies to activate the SSPI integrated security.
Default Value:
Deselected

Port

Function:
Specifies the port number to connect to the database server.
Accepted Values:
A valid port number.
Default Value:
None
Accepts Process Data Variables:
No

Timeout

Function:
Specifies the maximum time to connect to the database.
Accepted Values:
An integer.
Default Value:
600

Test Connection

Function:
Makes sure the specified database account is correct.

Encrypt

Function:
Holds the access token in the AgilePoint database as encrypted data.
Accepted Values:
  • Deselected - The access token is in plain text in the database.
  • Selected - The access token is encrypted in the database.
Default Value:
Deselected
